Redis shake实现可视化监控的示例代码
目录
- 一.redis-shake v4
- 1.镜像
- 2.shake.toml
- 3.启动redis-shake后
- 二.json-exporter配置
- 1.Dockerfile
- 2.config.yml
- 三.prometheus配置
- 1.prometheus.yml
- 2.redis-shake.json
- 四.grafana
一.redis-shake v4
1.镜像
######################### Dockerfile ######################################## FROM centos:7 WORKDIR /opt COPY shake.toml /tmp/ COPY redis-shake /opt/ COPY entrypoint.sh /usr/local/bin/ RUN chmod +x redis-shake && chmod +x /usr/local/bin/entrypoint.sh EXPOSE 8888 ENTRYPOINT ["entrypoint.sh"] ######################### entrypoint.sh ###################################### #!/bin/bash set -e eval "cat <<EOF $(< /tmp/shake.toml) EOF " > /opt/shake.toml /opt/redis-shake /opt/shake.toml exit 0
2.shake.toml
status_port = 8888 获取监控数据端口，部署启动时映射8888端口
function = ""
########## 过滤key #########################################
#function """
#local prefix = "user:"
#local prefix_len = #prefix
#if string.sub(KEYS[1], 1, prefix_len) ~= prefix then
# return
#end
#shake.call(DB, ARGV)
#"""
[sync_reader]
cluster = ${SOURCE_IF_CLUSTER} # set to true if source is a redis cluster
address = ${SOURCE_ADDRESS} # when cluster is true, set address to one of the cluster node
password = ${SOURCE_PASSWORD} # keep empty if no authentication is required
sync_rdb = ${SYNC_RDB} # set to false if you don't want to sync rdb true全量同步 false不全量同步
sync_aof = ${SYNC_AOF} # set to false if you don't want to sync aof true 增量同步 false不增量同步
prefer_replica = true # set to true if you want to sync from replica node
dbs = [] # set you want to scan dbs such as [1,5,7], if you don't want to scan all
tls = false
# username = "" # keep empty if not using ACL
# ksn = false # set to true to enabled Redis keyspace notifications (KSN) subscription
[redis_writer]
cluster = ${TARGET_IF_CLUSTER} # set to true if target is a redis cluster
address = ${TARGET_ADDRESS} # when cluster is true, set address to one of the cluster node
password = ${TARGET_PASSWORD} # keep empty if no authentication is required
tls = false
off_reply = false # ture off the server reply
# username = "" # keep empty if not using ACL
[advanced]
dir = "data"
ncpu = 0 # runtime.GOMAXPROCS, 0 means use runtime.NumCPU() cpu cores
# pprof_port = 8856 # pprof port, 0 means disable
status_port = 8888 # status port, 0 means disable
# log
log_file = "shake.log"
log_level = "info" # debug, info or warn
log_interval = 5 # in seconds
# redis-shake gets key and value from rdb file, and uses RESTORE command to
# create the key in target redis. Redis RESTORE will return a "Target key name
# is busy" error when key already exists. You can use this configuration item
# to change the default behavior of restore:
# panic: redis-shake will stop when meet "Target key name is busy" error.
# rewrite: redis-shake will replace the key with new value.
# ignore: redis-shake will skip restore the key when meet "Target key name is busy" error.
rdb_restore_command_behavior = ${RESTORE_BEHAVIOR} # panic, rewrite or ignore
# redis-shake uses pipeline to improve sending performance.
# This item limits the maximum number of commands in a pipeline.
pipeline_count_limit = 1024
# Client query buffers accumulate new commands. They are limited to a fixed
# amount by default. This amount is normally 1gb.
target_redis_client_max_querybuf_len = 1024_000_000
# In the Redis protocol, bulk requests, that are, elements representing single
# strings, are normally limited to 512 mb.
target_redis_proto_max_bulk_len = 512_000_000
# If the source is Elasticache or MemoryDB, you can set this item.
aws_psync = "" # example: aws_psync = "10.0.0.1:6379@nmfu2sl5osync,10.0.0.1:6379@xhma21xfkssync"
# destination will delete itself entire database before fetching files
# from source during full synchronization.
# This option is similar redis replicas RDB diskless load option:
# repl-diskless-load on-empty-db
empty_db_before_sync = false
[module]
# The data format for BF.LOADCHUNK is not compatible in different versions. v2.6.3 <=> 20603
target_mbbloom_version = 206033.启动redis-shake后
可部署多个 redis-shake 10.111.11.12:8888 10.111.11.12:8889 10.111.11.12:8890
{"start_time":"2024-02-02 16:13:07","consistent":true,"total_entries_count":{"read_count":77403368,"read_ops":0,"write_count":77403368,"write_ops":0},"per_cmd_entries_count":{"APPEND":{"read_count":2,"read_ops":0,"write_count":2,"write_ops":0},"DEL":{"read_count":5,"read_ops":0,"write_count":5,"write_ops":0},"HMSET":{"read_count":2,"read_ops":0,"write_count":2,"write_ops":0},"PEXPIRE":{"read_count":8,"read_ops":0,"write_count":8,"write_ops":0},"RESTORE":{"read_count":77403341,"read_ops":0,"write_count":77403341,"write_ops":0},"SADD":{"read_count":1,"read_ops":0,"write_count":1,"write_ops":0},"SCRIPT-LOAD":{"read_count":7,"read_ops":0,"write_count":7,"write_ops":0},"SET":{"read_count":2,"read_ops":0,"write_count":2,"write_ops":0}},"reader":[{"name":"reader_10.127.11.11_9984","address":"10.127.11.11:9984","dir":"/opt/data/reader_10.172.48.17_9984","status":"syncing aof","rdb_file_size_bytes":867659640,"rdb_file_size_human":"828 MiB","rdb_received_bytes":867659640,"rdb_received_human":"828 MiB","rdb_sent_bytes":867659640,"rdb_sent_human":"828 MiB","aof_received_offset":567794044,"aof_sent_offset":567794044,"aof_received_bytes":6614445,"aof_received_human":"6.3 MiB"},{"name":"reader_10.127.11.12_9984","address":"10.127.11.12:9984","dir":"/opt/data/reader_10.172.48.16_9984","status":"syncing aof","rdb_file_size_bytes":867824091,"rdb_file_size_human":"828 MiB","rdb_received_bytes":867824091,"rdb_received_human":"828 MiB","rdb_sent_bytes":867824091,"rdb_sent_human":"828 MiB","aof_received_offset":564917306,"aof_sent_offset":564917306,"aof_received_bytes":6612502,"aof_received_human":"6.3 MiB"},{"name":"reader_10.127.11.13_9984","address":"10.127.11.13:9984","dir":"/opt/data/reader_10.172.48.15_9984","status":"syncing aof","rdb_file_size_bytes":867661773,"rdb_file_size_human":"828 MiB","rdb_received_bytes":867661773,"rdb_received_human":"828 MiB","rdb_sent_bytes":867661773,"rdb_sent_human":"828 MiB","aof_received_offset":562834707,"aof_sent_offset":562834707,"aof_received_bytes":6615286,"aof_received_human":"6.3 MiB"}],"writer":[{"name":"writer_10.127.12.11_9984","unanswered_bytes":0,"unanswered_entries":0},{"name":"writer_10.127.12.12_9984","unanswered_bytes":0,"unanswered_entries":0},{"name":"writer_10.127.12.13_9984","unanswered_bytes":0,"unanswered_entries":0}]}
二.json-exporter配置
1.Dockerfile
FROM prometheuscommunity/json-exporter:latest USER root RUN mkdir -p /opt WORKDIR /opt COPY config.yml /opt/
2.config.yml
根据上边返回的json数据，制定自己需要的监控模版，部署json-exporter 10.111.11.11:7979
modules:
default:
headers:
X-Dummy: my-test-header
metrics:
- name: shake_consistent
help: Example of sub-level value scrapes from a json
path: '{.consistent}'
labels:
start_time: '{.start_time}'
- name: shake_total_entries_count
type: object
help: Example of sub-level value scrapes from a json
path: '{.total_entries_count}'
values:
read_count: '{.read_count}' # static value
read_ops: '{.read_ops}' # dynamic value
write_count: '{.write_count}'
write_ops: '{.write_ops}'
- name: shake_per_cmd_entries_count_restore
type: object
help: Example of sub-level value scrapes from a json
path: "{.per_cmd_entries_count.RESTORE}"
values:
read_count: '{.read_count}'
read_ops: '{.read_ops}'
write_count: '{.write_count}'
write_ops: '{.write_ops}'
- name: shake_per_cmd_entries_script_load
type: object
help: Example of sub-level value scrapes from a json
path: "{.per_cmd_entries_count.SCRIPT-LOAD}"
values:
read_count: '{.read_count}'
read_ops: '{.read_ops}'
write_count: '{.write_count}'
write_ops: '{.write_ops}'
- name: shake_reader
type: object
help: Example of sub-level value scrapes from a json
path: "{.reader}"
labels:
address: '{.address}' # dynamic label
dir: '{.dir}'
status: '{.status}'
values:
rdb_file_size_bytes: '{.rdb_file_size_bytes}'
rdb_received_bytes: '{.rdb_received_bytes}'
rdb_sent_bytes: '{.rdb_sent_bytes}'
aof_received_offset: '{.aof_received_offset}'
aof_sent_offset: '{.aof_sent_offset}'
aof_received_bytes: '{.aof_received_bytes}'
- name: shake_writer
type: object
help: Example of sub-level value scrapes from a json
path: "{.writer}"
labels:
name: '{.name}' # dynamic label
values:
unanswered_bytes: '{.unanswered_bytes}'
unanswered_entries: '{.unanswered_entries}'三.prometheus配置
1.prometheus.yml
global:
scrape_interval: 15s
evaluation_interval: 15s
scrape_configs:
- job_name: json_exporter
metrics_path: /probe
file_sd_configs:
- files:
- 'redis-shake.json'
relabel_configs:
- source_labels: [__address__]
target_label: __param_target
- source_labels: [__param_target]
target_label: instance
- target_label: __address__
replacement: 10.111.11.11:7979 # json-exporter地址2.redis-shake.json
单独的文件配置可实现动态加载，同时可添加自定义的标签在文件中
[
# labels为自定义的标签，targets为部署各个redis-shake地址
{"labels": {"env-1":"团队1"},"targets": ["http://10.111.11.12:8888"]},
{"labels": {"env-1":"团队2"},"targets": ["http://10.111.11.12:8889"]},
{"labels": {"env-1":"团队3"},"targets": ["http://10.111.11.12:8890"]}
]四.grafana

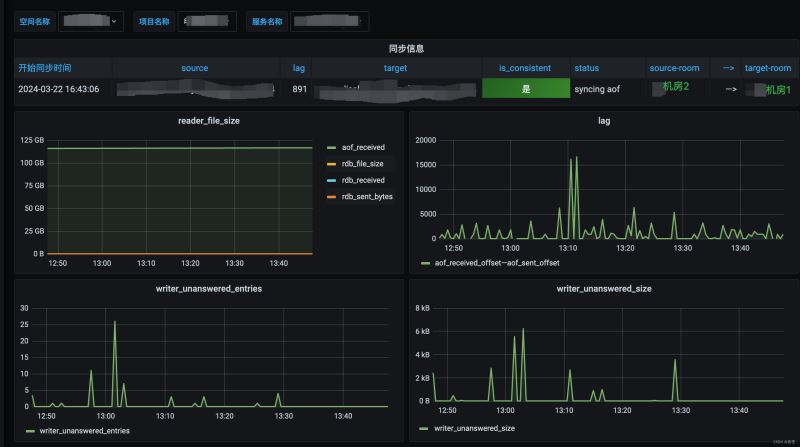

上边的都配置好，把自己的peometheus数据源添加到grafana中，就可以设置自己想要的监控界面了
